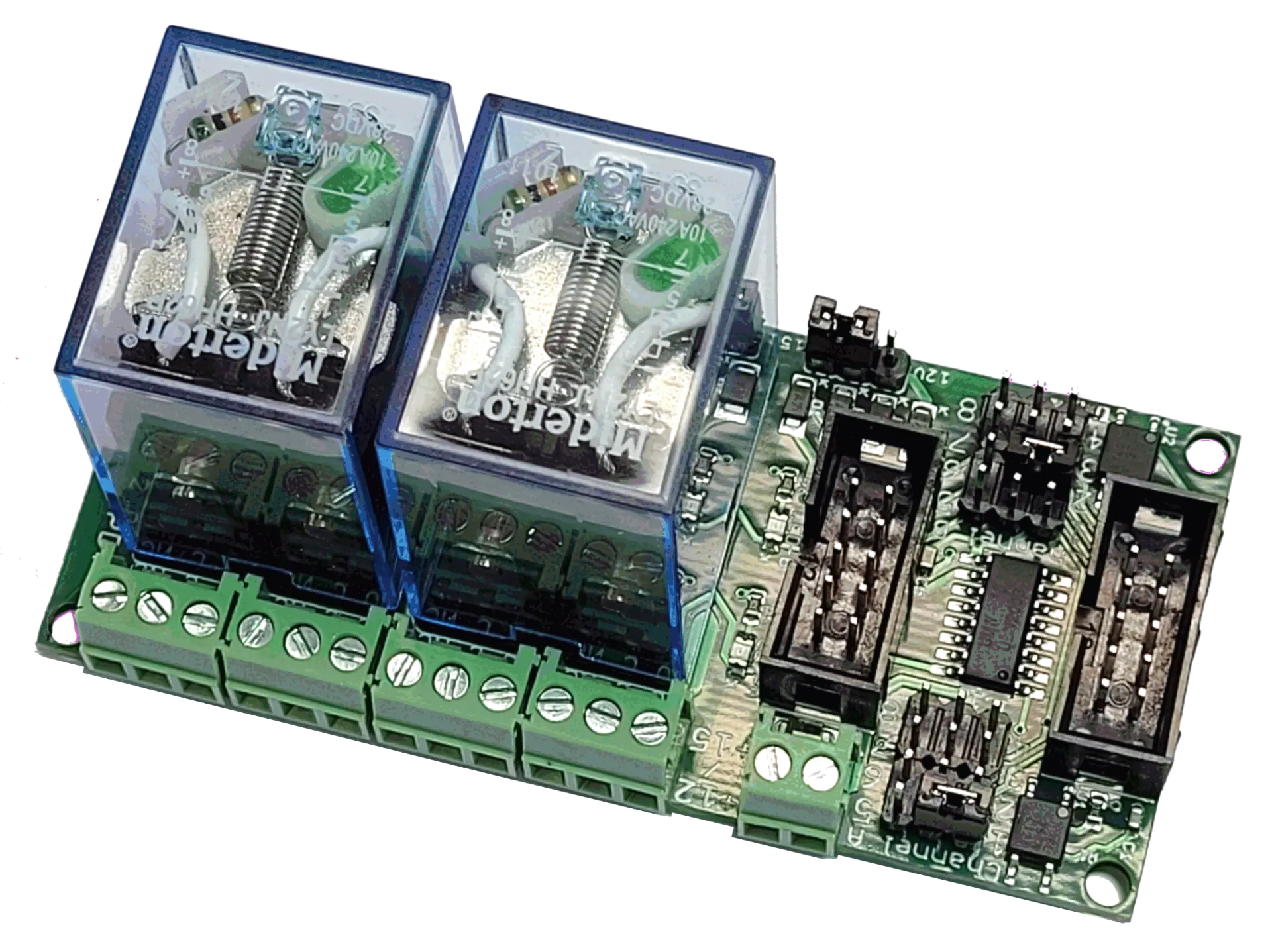

Relay Board
RB-2 is a Dual DPDT (RB-4 is a Quad SPDT) 10A relay board with logic
level drivers. It is suitable for use with TC Mark II, TowerMan,
Tower LCC, or other logic level output devices. It requires 12V
auxiliary power to supply the relay coils. Auxiliary power is
optically isolated from the logic inputs for double isolation.
LED indicators for each relay make it easy to monitor activity.
Includes dual ribbon connectors to allow pass through connection. Jumper selection of line 1-8 for each relay. Compatible with the Tower LCC, Signal LCC, or other driver board.
Compatible with LCC Sample Mode.
-
Relay Type
